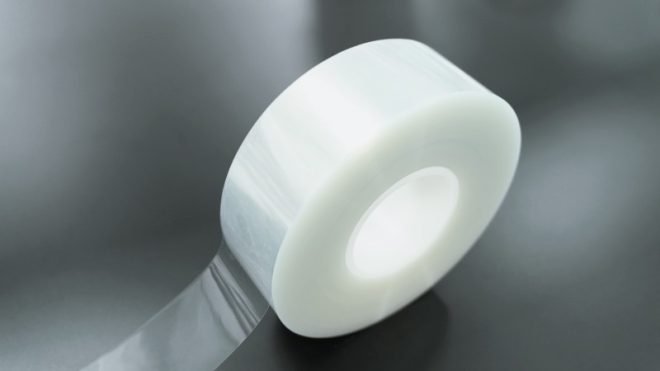

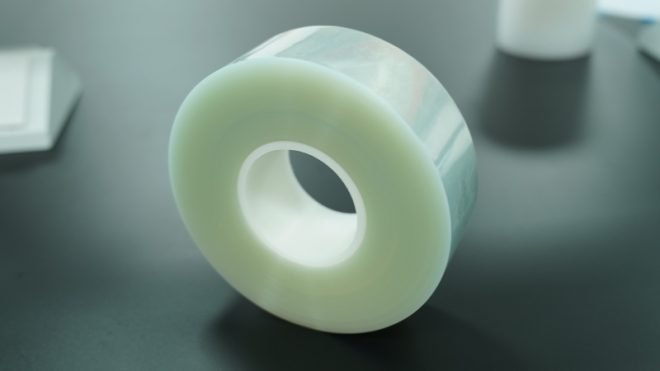

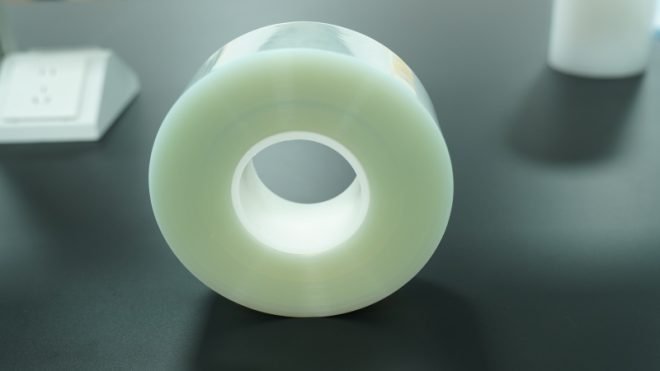

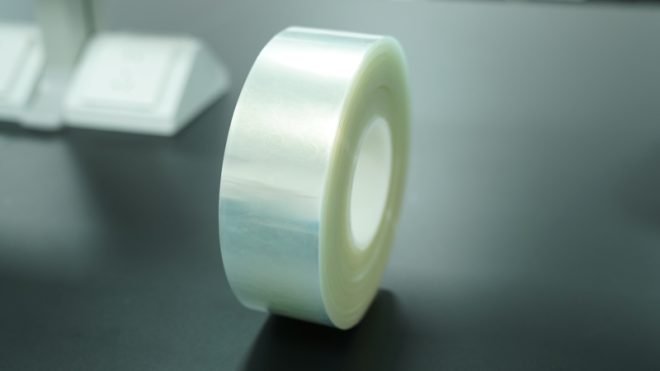

PET SILICONE PROTECTIVE FILM (TDS-Technical Data Sheet)
Product Model: PE3015-W
1. Product Description
A double-layer high-viscosity silicone PET protective film. It uses transparent PET as the base material, is coated with silicone adhesive on one side, and then laminated to the PET film.
2. Basic Product Structure
- PET substrate
- PET Film
- Silicone
3. Product Characteristics
High transparency, excellent surface smoothness, easy application and peeling, no residual adhesive at high temperatures, automatic adsorption and bubble removal, stable adhesion, scratch resistance, good weather resistance, and high cleanliness achieved by dust-free production make it widely used in protecting electronic product screens, flat panel displays, and other optoelectronic materials.
4. Product Application Scope
Surface protection in the electronics and electrical industry, screen protection, display protection in the optoelectronic display industry (such as LCD liquid crystal displays, backlight boards, cold – light boards, mobile phone screens), die – cutting and waste discharge, plastics, printing, automotive industry, etc.
5. Physical Parameters
| Item | Unit | Characteristic Value | Test Method |
|---|---|---|---|
| Color | / | Transparent | Visual Inspection |
| Thickness | μm | 46 ± 5 | Thickness Gauge |
| Adhesive Type | / | Silicone | / |
| Peel Strength | gf/25mm | 300 ± 50 | Peel Strength Tester |
| Temperature Resistance | ℃/1H | 60℃/1H | High-Temperature Oven |
| Elongation at Break | % | ≥ 200% | Tensile Testing Machine |
| Tensile Strength | MPa | / | / |
| Appearance (after specified tests) | / | Good | High-Temperature Oven, Constant Temperature and Humidity Tester |
| Residue, Bubbles, Fogging | / | None (Meets Requirements) | / |
6. Customizable
| Customizable Colors | Customizable Gram Weights | Customizable Thicknesses | Customizable Width Sizes | Customizable Length Sizes |
|---|---|---|---|---|
| Transparent | 1 – 2000 g | 25 μm – 150 μm | 1 – 1500 mm | 100 M – 2000 M |
7. Product Usage Instructions
- Before use, please clean the surface of the object to be pasted to remove oil, moisture, dust, and other impurities.
- Since pressure-sensitive adhesives are used, a roller or stamping equipment must be used for full pressing during lamination.
- The above technical data are obtained by the company using industry-recognized and reliable testing methods and do not serve as a product specification guarantee.
- When processing conditions are strict, repeated tests should be conducted, and the product can be used only after full verification.
- The optimal storage conditions for the product are 23 ± 5℃ and 50 ± 10% RH (Relative Humidity), with a shelf life of 6 months.
- Storage under conditions such as direct sunlight, high temperature (above 35℃), high humidity (above 70% RH), and low temperature will not be covered by the 6-month shelf life guarantee.
- If the surface of the object is damp, or if the product is used in a dusty, acidic, or alkaline environment, or when laminated with special materials, repeated verification is required before it can be put into use.
- The above data are for reference only and do not provide any legally binding guarantee.
